EZRun MAX5 G2 Brushless ESC & Motor Combo

EZRun MAX5 G2: Unleash Your RC Speed - 800kV Brushless Powerhouse!

“Unleash your inner adventurer with the Wanderlust Explorer Kit – a curated collection of rugged essentials for every epic journey, from sunrise hikes to starlit campfires. Crafted with premium materials and designed for durability, this kit is your passport to unforgettable memories. Ignite your spirit of discovery.”

$195.00 $389.99

num:

description

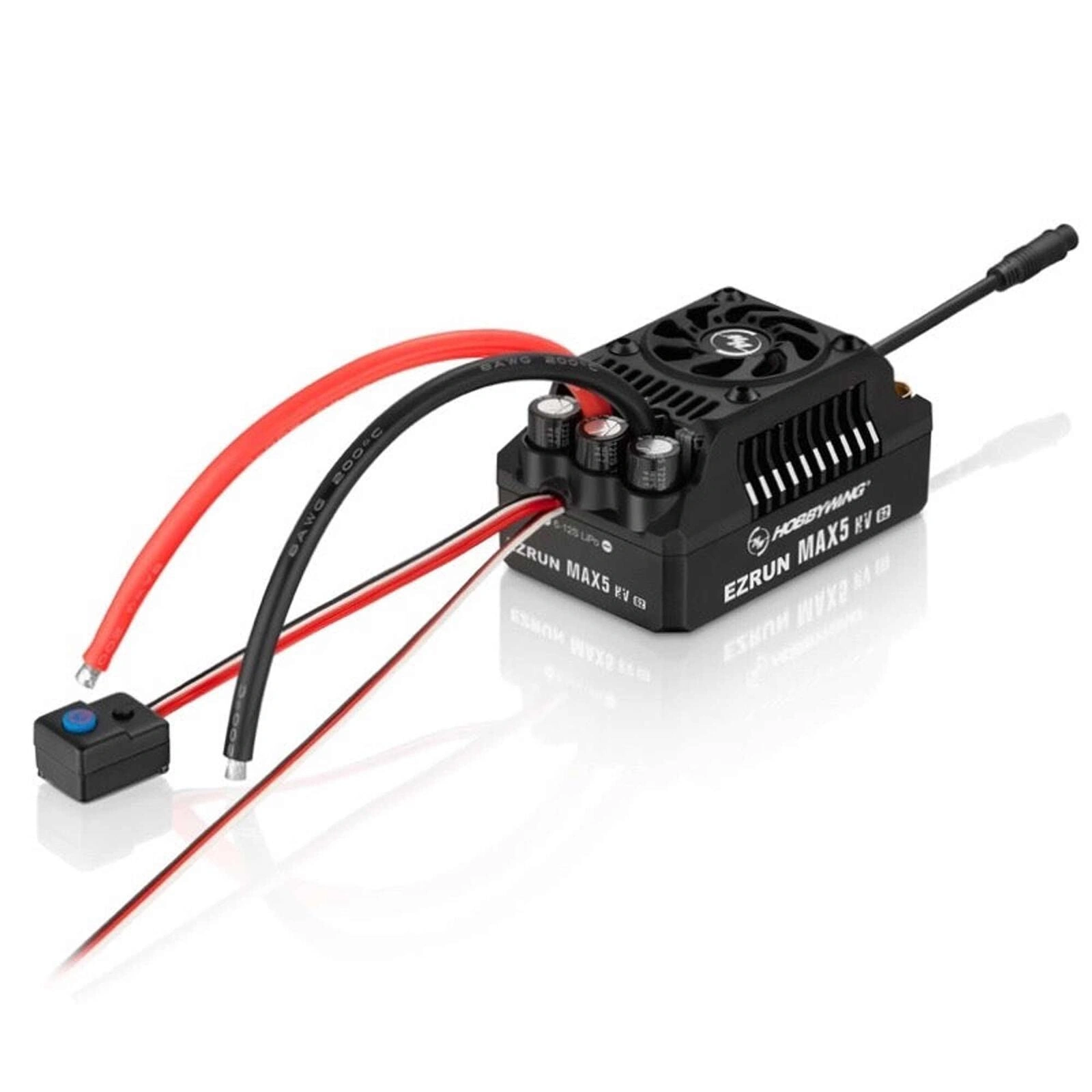

Details:

The ESC uses a special process, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates. It is easy to deal with the harsh conditions containing sediment, ice and snow, water accumulation. Built-in ultra-powerful switch mode BEC with a continuous current of 8A, an instant 25A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos. Supports turbo timing setting, the timing response is remarkable when used with the matching motor(such as EZRUN 56118SD G2 Sensored brushless motor).Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, current protection. Supports LED program card, LCD G2 program box, OTA programmer (Note: optional) to set the parameters of the ESC. Data logging function to view various running data on the HW LINK app using the OTA Bluetooth module. Supports the firmware upgrade of the ESC (The multi-function LCD G2 program box or OTA Programmer is needed to purchase), you can enjoy the latest functions

ESC Specifications:

Cont. Peak Current: 250A / 1600A
Motor Type Sensored / Sensorless Burshless
Application 1/5 Buggy, Truck
Motor Limit: With 8S Lipo: KV < 1200
Motor Limit: With 12S Lipo: KV < 800 56118 Motor Size
Lipo Cells 6-12 Lipo
BEC Output 6V/7.4V/8.4V Adjustable, Continious Current 8A (Switch Mode)
Cooling Fan Stable 6V/7.4V/8.4V From Built In BEC
Size / Weight 94.5(L) x 59.4(W) x 50.9(H) / 428.5g (Included Wires)
Programming Port Independent Programming Port

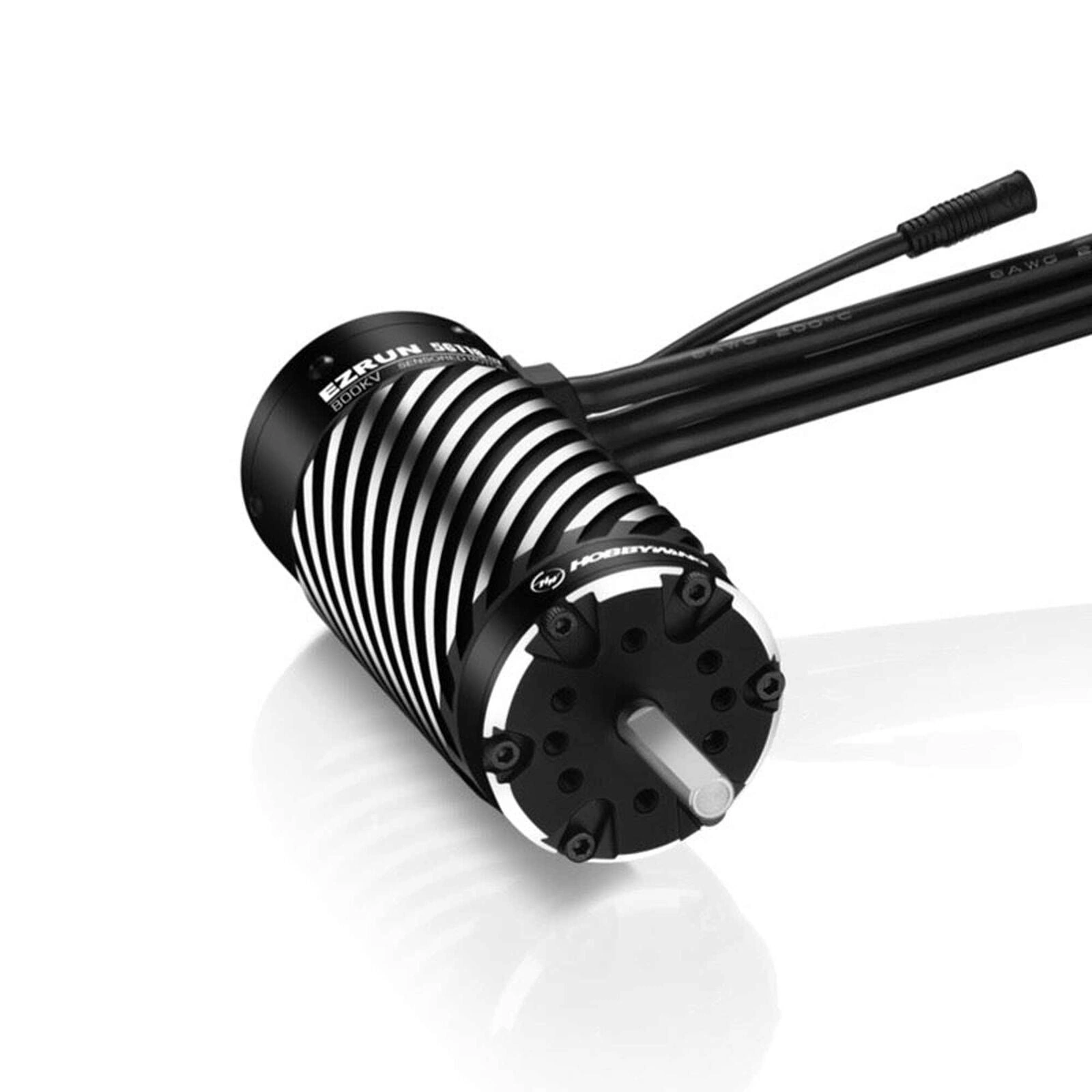

Motor Details:

Compared with the previous generation, it has added a new waterproof sensor cable, upgraded to a sensored system, with better accelerate linearity and stronger explosive force. It has perfect compatibility when it is matched with Hobbywing EZRUN MAX5 G2 ESC, the esc can automatically recognize this motor, and build a power system with full sensor mode, providing better control performance and more delicate control feel, and also realizing the motor overheat protection function. The independent high-precision encoder always outputs pure rotor position signal, which effectively avoids the interference of sensor signal and makes the motor work stably in sensor state.
CNC machined aluminum housing, high purity copper windings, high strength explosion-proof rotor, ultrathin silicon steel laminations, high-quality stainless steel output shaft, high-precision bearing for high durability and smoothness. The innovative new sensor interface and rubber cover bearing have better waterproof and dustproof effect than the traditional sensor motor
